Vacuum degasser installation [Quanzhen Company Refrigeration System Case]

Vacuum degasser installation [Quanzhen Company Refrigeration System Case]

Quanzhen Company decided to choose Peide vacuum degasser products after multiple investigations. Three units were installed on March 9, 2019. The equipment was put into trial operation on March 10. After nearly 6 months of operation, the equipment was accepted on September 10.

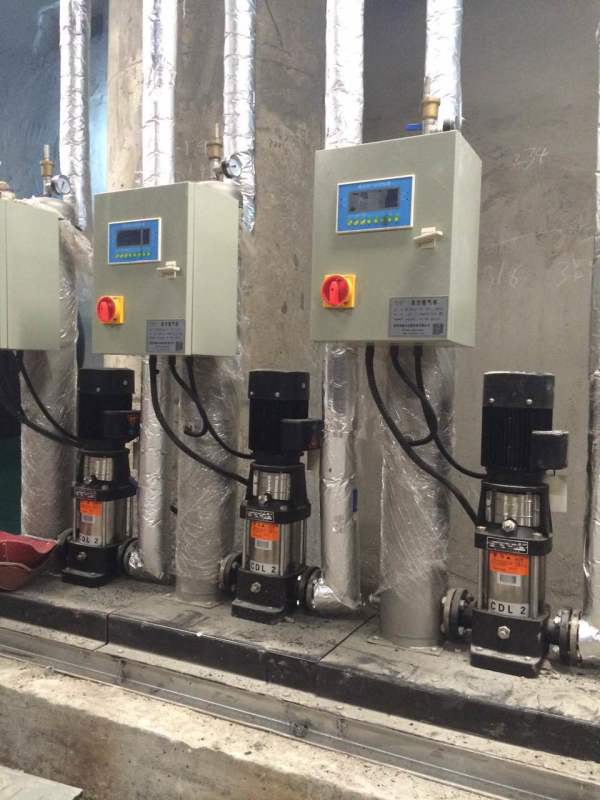

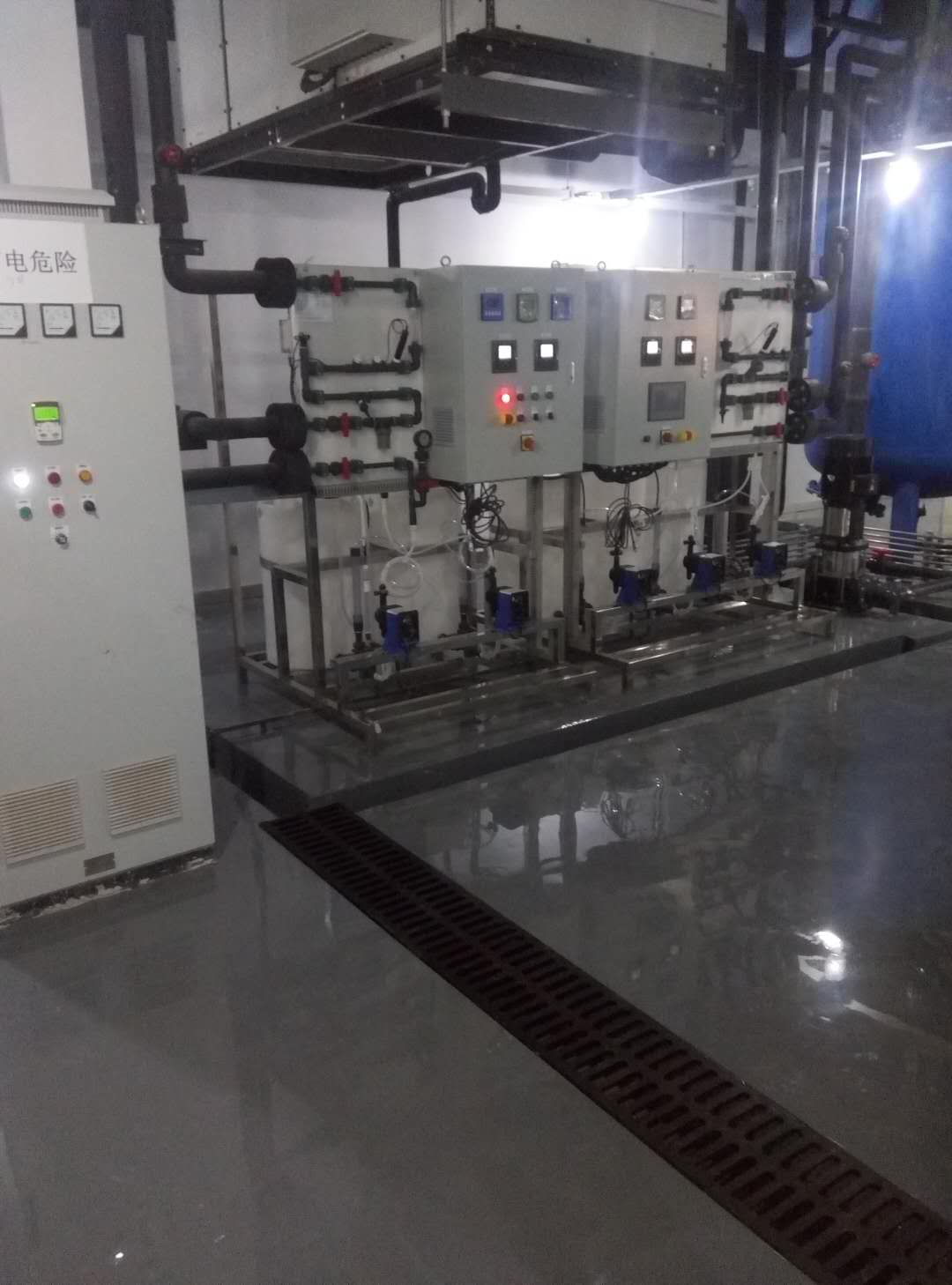

Shanghai Quanzhen Company Installation Site Picture:

If there is gas in the heating and cooling system, the system is prone to gas stagnation, which will cause poor circulation in the local or entire system. The increase in water stagnation will cause the heating system to be not hot and the refrigeration system to be not cold. At the same time, due to the oxygen contained in the water, the heating (refrigeration) equipment, pipelines and steel radiators will be aerobic corroded, causing perforation and water leakage. The presence of gas in the system will also cause corrosion of the water pump, which will directly affect the safety of the entire system. The vacuum degasser uses a vacuum degassing method to quickly remove free gas and dissolved gas in the system, so that the system can be safe and operational. In the circulating water system, many users use water softeners, constant pressure water replenishment devices, spiral degassers and direct air degassing machines together, which can not only reduce scaling, stabilize system pressure, and reduce energy consumption; but also slow down corrosion, reduce noise, and reduce water turbidity.

Vacuum degasser technical parameters Working temperature: 1~90C Ambient temperature: 1~40°C Use medium temperature: 0-90℃C Power supply: 380V/50Hz

Operating pressure: 1~16bar

Equipment protection level: IP54 Working environment humidity: <95%, no condensation Free gas removal rate: 99% Dissolved gas removal rate: 90% Operation mode: Fully automatic/timing automatic/manual, three modes can be switched Applicable system: Refrigeration, hot and cold dual supply system and heating system.

This article is produced by Changzhou Peide Water Treatment Company
